Technical Specification | |
FREQUENCY RESPONSE: | 32 Hz-180 Hz(±3 dB) 30 Hz-250 Hz(-10 dB) |
NOMINAL COVERAGE(-6dB): | Omnidirectional |
SENSITIVITY(@1w/1m): | 102 dB SPL |
POWER RATING(AES): | 1600W |
NOMINAL IMPEDANCE: | 8 ohm |
MAXIMUM SPL: | 141 dB(peak) |
DRIVERS: | 2 * 18"(100mm Voice Coil)Subwoofer |
Physical Data | |
DIMENSIONS(H*W*D): | 561*1165*670mm |
WEIGHT: | 76 kg/168 lbs |
CONNECTORS: | 2 * NL4MP Neutrik Speakon Connectors |
SPEAKER CABLES: | 1+1- |
MATERIALS: | 18mm,24mm Birch Plywood |
FINISH: | Black Polyurea Paintings |
GRILLE: | Black Epoxy Mesh Grille With Acoustically Reticulated Foam |

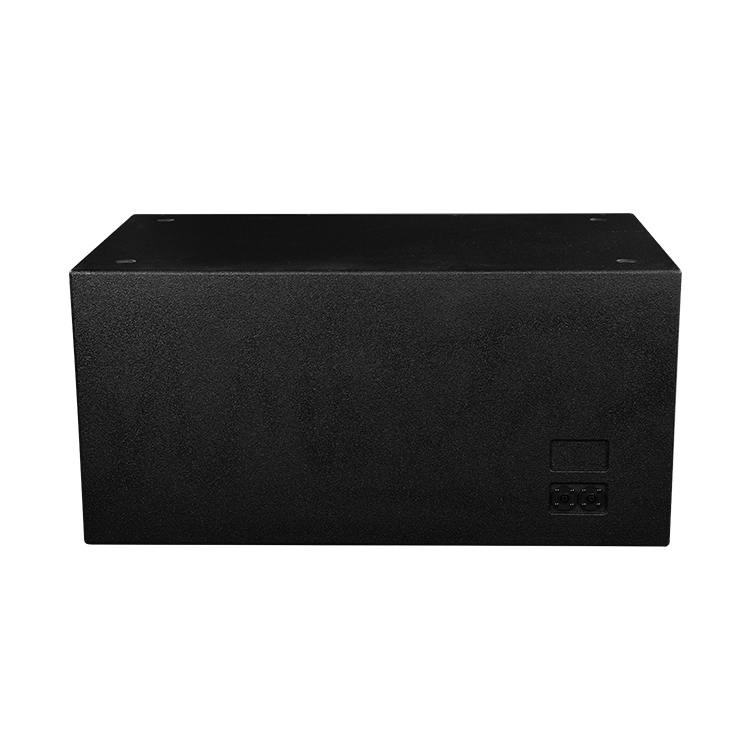

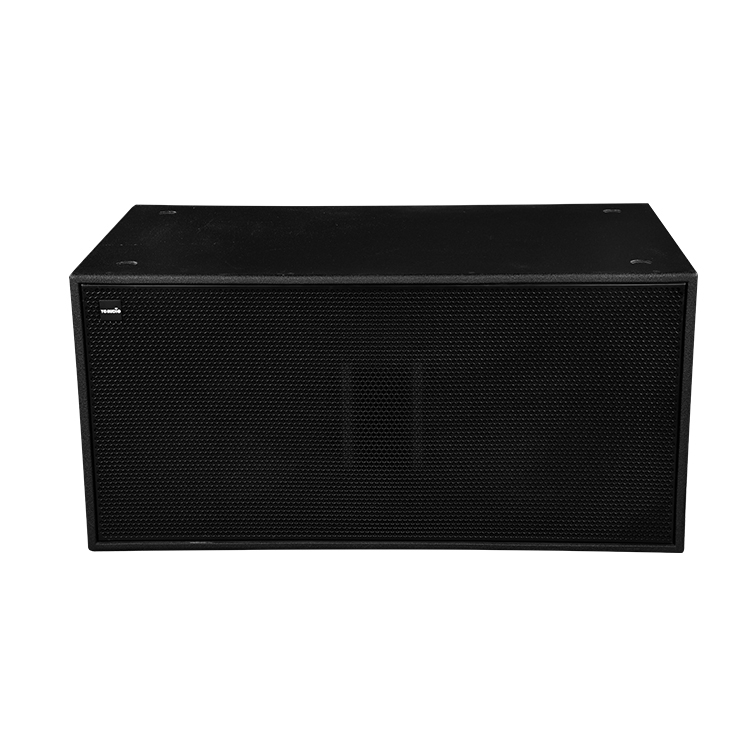

YC218B Dual 18 subwoofer line array audio speaker 2000W
YC218B is a dual 18‘’ line array subwoofer, HF adopt 18‘’inch ferrite speaker driver, high spl output. Suitable for all kinds of stadium,gymnasiums, church, bar and conference room.
