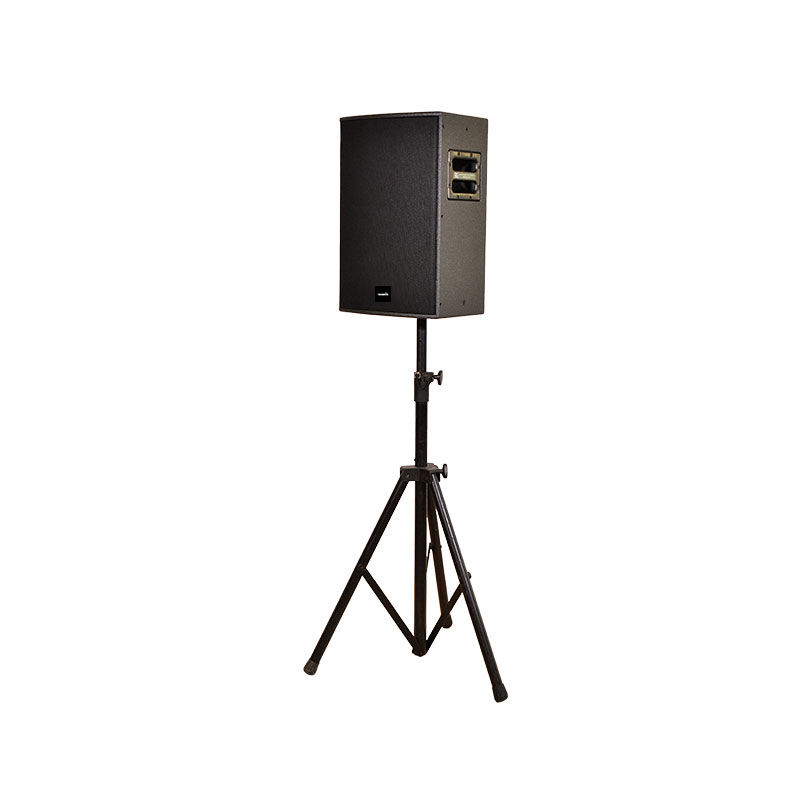

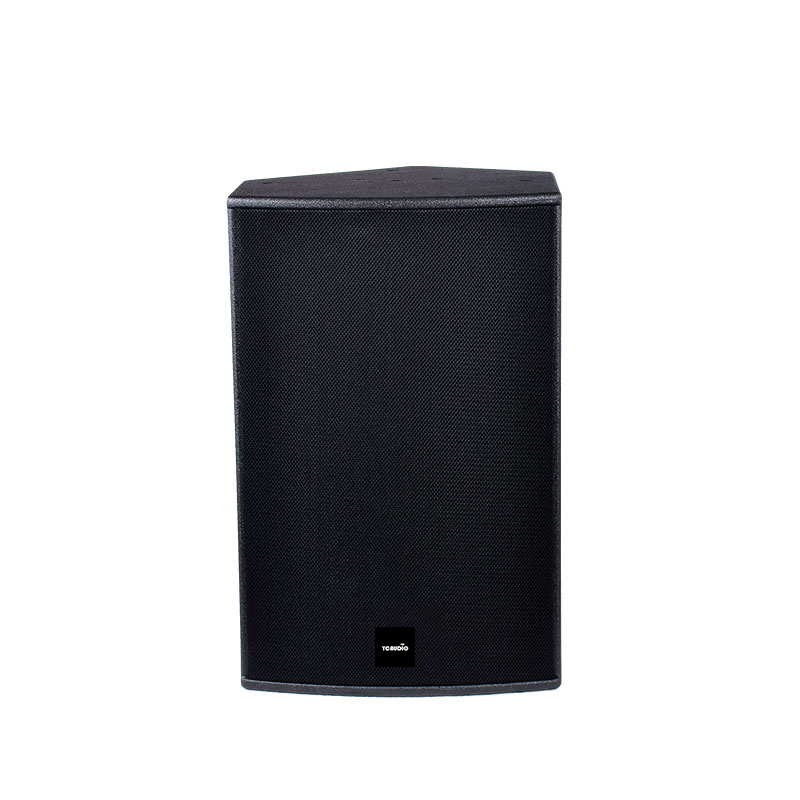

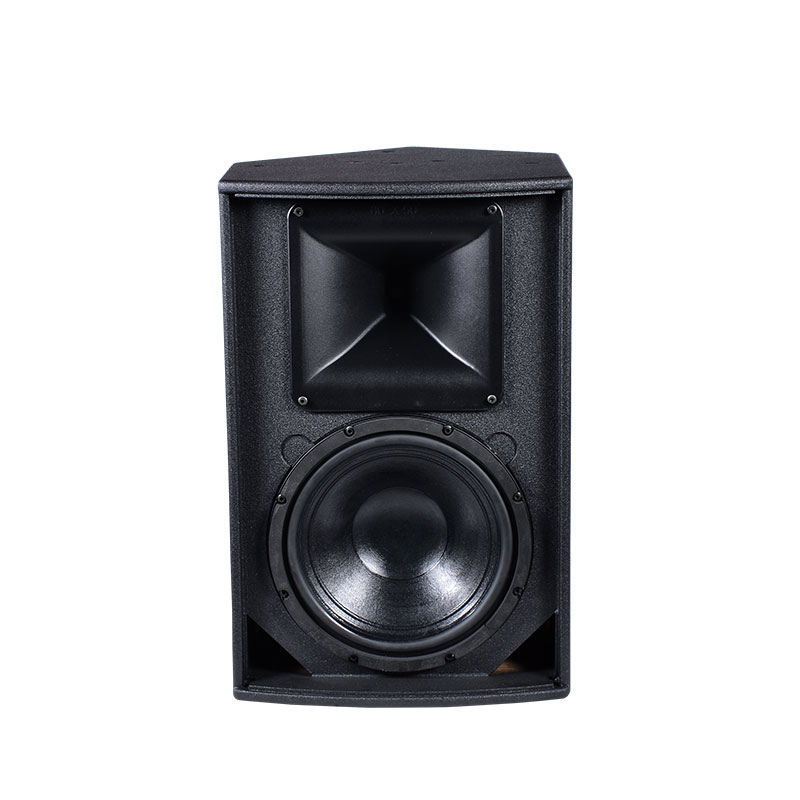

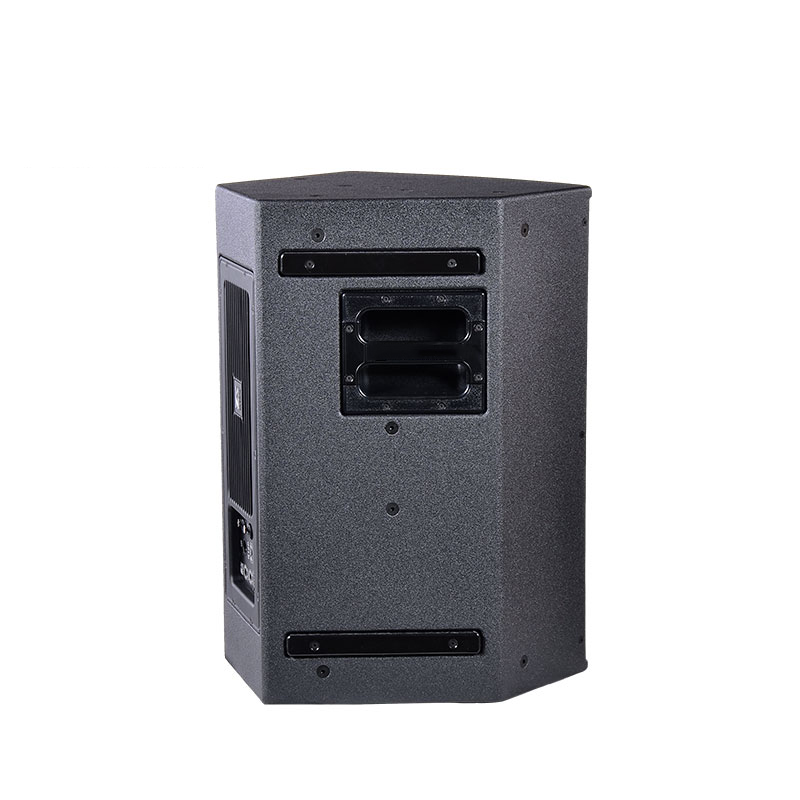

YC15P 15 inch Two Way Selfpower Fullrange Speaker

YC Series is two full range self power speaker, mainly designed as FOH and monitor. The coverage of HF horn is 80°×50°. And it Built-in voltage toggle switch for voltage requirements in different countries. It supports a variety of signal input. Such as MIC and LINE. It has a volume control and with attenuation value. And it is suitable for Auto Show, multi-function hall, and small hall show.



Feature:

Two way self power full range speaker

Elastic bass

Long throw rubber edge LF driver

Rotatable 80° × 50 °directivity horn



Applications:

Small FOH

Stage monitor

Near-field sound

Contact Us
  • Description
Frequency range(include powered module) 55 Hz ~ 18KHz (+3 dB )    50 Hz ~ 20KHz (-10dB )
Normal power (AES)  500W
Driver LF 1×15" (75mm voice coil) woofer
HF 1×3" (1"throat) exist compression drive(75mm voice coil)
Nominal Coverage 80°× 50°
MAXIMUM SPL                             123dB SPL,129 dB SPL peak
Voltage requirement           100V-120V/200-240V~ 50-60Hz
Amplifier module Double channels 700W
Total harmonic distortion (1KHz, full frequency 4Ω) ≤1%
SNR 102.5 dB(
Audio in gain (1KHz 8Ω) 23 dB
Mic in gain (1KHz 8Ω) 56 dB
Input connectors (per.ch) male XLR & female XLR (Neutrik)
Input impedance 20KΩbalanced/10KΩunbalanced
Output circuit style D class
Cooling system Fan from back from front, Forced cooling
PHYSICAL DATA
Dimension(H×W×D) 680×456×449(mm)
Weight (include powered module) 31(kg)
Rigging 17×M8 top +35mm bottom×1
Material of enclosure 15mm,18mm plywood
Surface Blackwater paint
Grille Black epoxy mesh grille with acoustically
