8 pcs LA210+ 4 pcs S28 Plug&play finished outdoor event concert line array sound system speakers

Warranty:1 YEAR WARRANYT
Brand name:YC AUDIO
Certificate:CE, RoHS
Power rating:800W
Nominal impedance:16ohm
Port:Guangzhou
Dimension:730*465*303mm
Service:OEM;ODM
Application:touring performance,stadium and theater

Contact Us
  • Description

Recommend complete system

LA210*8+S28*4+LA210flight case(2in1)*4+S28flight case*4+bumper*2+6Uamp rack*2+MA2400S*2+M44T*2+TCD4*2+20m 4core cable*4+0.5m 4core cable*6+2m 4core cable*2

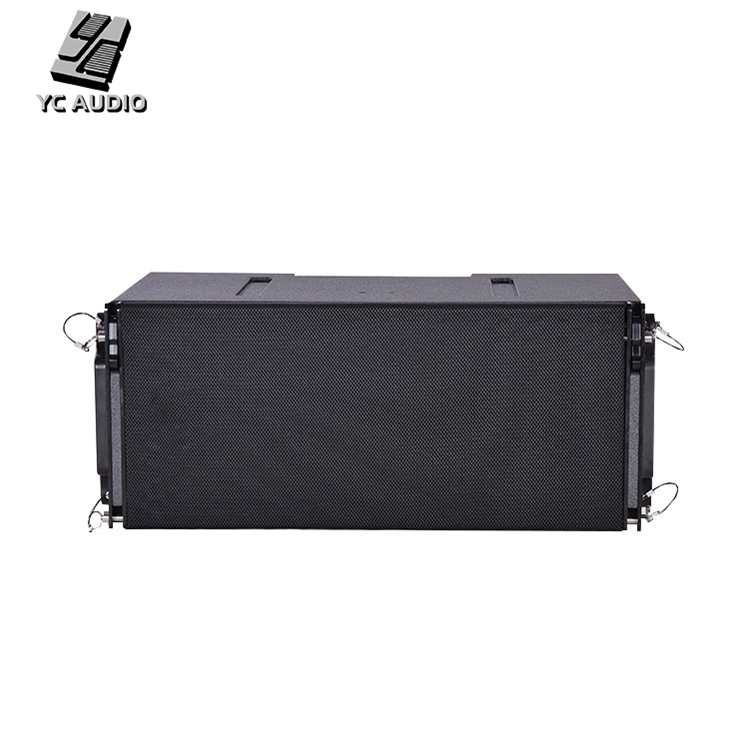

LA210 Description

LA210  is a dual 10 inch ; two way line array speaker, provide 50HZ - 16 KHZ frequency range . One 3-inch (75mm voice coil) compression tweeters, and two 10-inch bass unit constitutes a dynamic margin great combination to make high output SPL. The wooden box is made of Russian birch multi-plywood with hard wear-resisting and waterproof black polyurea coatings finish. All the materials are carefully selected, and it is specially design for performance when transported and sun and rain .



Applications

stadiums, churches, bars, conference rooms.

LA210 Technical specifications:

Frequency response:

50 Hz ~ 16KHz (+ 3dB )



40 Hz ~ 18KHz (-10dB )

Nominal coverage:

100°(H)10°(V)

Sensitivity (1W/1m):

HF:112dB



LF:96dB

Power rating:

HF/LF:80W/800W

Nominal impedance:

HF/LF:16/16 Ohm

Maximum SPL:

HF:138dB peak



LF:131dB peak

Drivers:

LF:2x10’’ woofer



HF:1x3’’  compression driver (75mm voice coil)

LA 210 Physical data

Dimension(HXWXD):

730*465*303mm

Weight:

39 (kg)

Connectors:

2 x NL4 connectors

Speaker cables

1+1-

Materials:

15mm, 18mm birch multi-plywood

Finish:

Black polyuare paint

Grille

Black epoxy mesh grille with acoustically reticulated cloth

Rigging:

0,1,2,3,4,5,6,7.5 degree adjustable

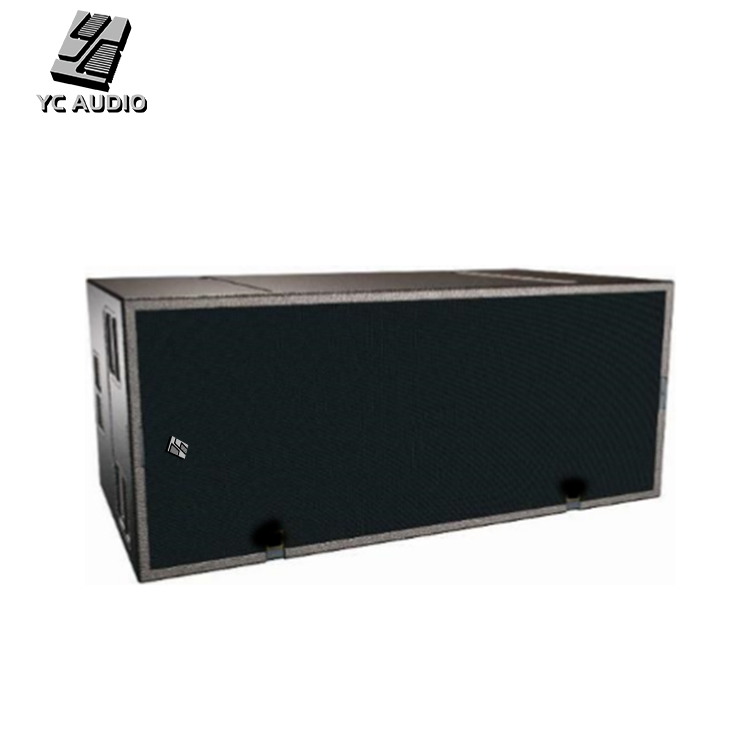

S28 Description

Feature:

1000W (AES) LF driver

Thick and elastic hearing

Low frequency low to 28Hz

Mounted wear-resisting Nylon bar



Application:

Touring performance

Stadium

Theatre



S28 Technical specification

FREQUENCY RESPONSE

28 Hz ~ 180Hz (+ 3dB )

23 Hz ~ 250Hz (-10dB )

NOMINAL COVERAGE(-6dB)

Omnidirectional

SENSITIVITY(@1w/1m)

103 dB SPL

POWER RATING(AES)

2000W

NOMINAL IMPENDANCE

8 Ohm

MAXIMUM SPL

136 dB (continuous)  142 dB (peak)

DRIVERS

2x18“ waterproof paper cone driver

S28 PHYSICAL DATA

CONNECTORS

2xNL4 connectors

SPEAKER CABLES:

1+,1-

MATERIALS:

24mm and 30mm birch plywood

FINISH:

Black polyuare paint

GRILLE:

Black epoxy mesh grille with acoustically reticulated cloth
