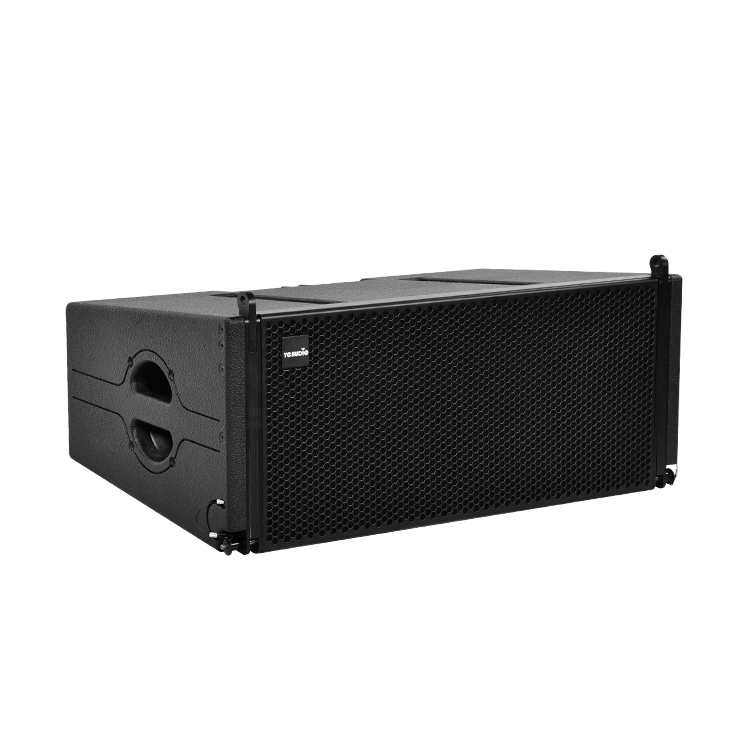

LA210 Passive dual 10 inch two way line array speaker

LA210  is a dual 10 inch; two-way line array speaker, provide 50HZ - 16 kHz frequency range. One 3-inch (75mm voice coil) compression tweeters and two 10-inch bass unit constitute a dynamic margin great combination to make high output SPL.

The wooden box is made of Russian birch multi-plywood with hard wear-resisting and waterproof black polyurea coatings finish. All the materials are carefully selected, and it is specially designed for performance when transported and sun and rain.

The LA210 peak SPL output up to 138 dB and 100meter throw distance, its applications for stadiums, churches, bars, conference rooms.

Contact Us
  • Description

LA210 Technical specifications:

Frequency response:

50 Hz ~ 16KHz (+ 3dB )



40 Hz ~ 18KHz (-10dB )

Nominal coverage:

100°(H)10°(V)

Sensitivity (1W/1m):

HF:112dB



LF:96dB

Power rating:

HF/LF:80W/800W

Nominal impedance:

HF/LF:16/16 Ohm

Maximum SPL:

HF:138dB peak



LF:131dB peak

Drivers:

LF:2x10’’ woofer



HF:1x3’’  compression driver (75mm voice coil)

Physical data

Dimension(HXWXD):

730*465*303mm

Weight:

39 (kg)

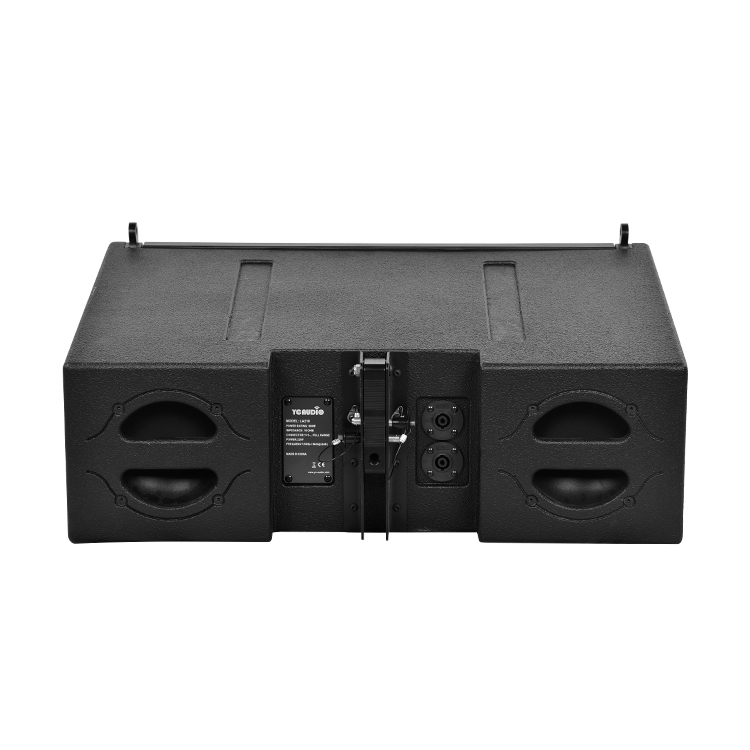

Connectors:

2 x NL4 connectors

Speaker cables

1+1-

Materials:

15mm, 18mm birch multi-plywood

Finish:

Black polymer paint

Grille

Black epoxy mesh grille with acoustically reticulated cloth

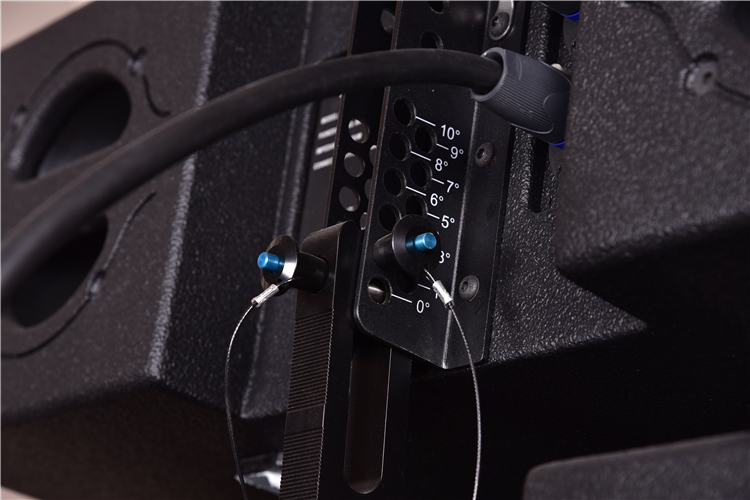

Rigging:

0,1,2,3,4,5,6,7.5 degree adjustable
